Fiery NX Stations
Innovative design, efficient operation
With a cutting-edge industrial design, Fiery® NX Stations house Fiery NX servers in a highly efficient workspace that optimizes space usage and increases productivity.
The Fiery NX Station family is purpose-built to house Fiery NX servers, giving operators everything they need within arm's reach, reducing clutter, and keeping daily production running smoothly. Whether you're running a compact shop or a high-volume production floor, there's an NX Station built for your environment.
All three models share the same thoughtful design philosophy: organized workspaces and easy access to the Fiery server and the Fiery QuickTouch touchscreen display for fast, at-a-glance job management.

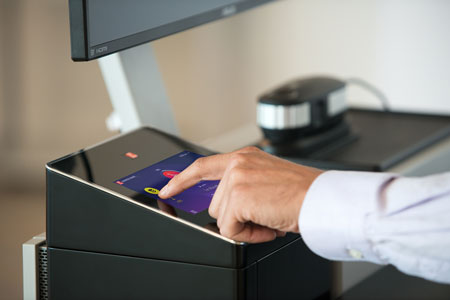

Fiery QuickTouch
Fast job and device management
Every NX server includes the Fiery QuickTouchTM software on the touchscreen display, which gives users faster views of job status information and access to server management. With just a tap, the display gives operators easy access to intuitive system installation, backup and restore functionality, plus system diagnostics.
The NX Station family

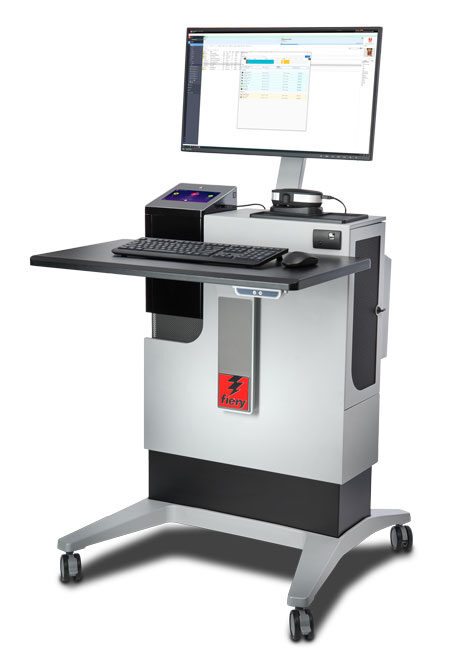

NX Station LS
Ergonomic operation
The adjustable-height workspace adapts to the operator’s height for less fatigue and higher productivity. The display adjusts vertically and tilts for a better viewing angle.
High-efficiency work area
A proximity sensor changes the display from Fiery Ticker to the active application when it identifies someone approaching. This allows operators to resume work right away.
The compact design reduces the footprint by over 20% but still offers a large work area with a top tray to store commonly used items. Five USB ports are easy to access. A wireless mouse and keyboard save space and make the work area more flexible.
Quick and easy to install and maintain
The NX server glides out on a sliding shelf for easy installation and service access. Cables are neatly stored in the inside cabinet to keep them protected and out of the way. Plus, with the built-in internal power strip, you only need one wall outlet to power both the NX Station and the NX server.
Central hub for multi-engine environments
The NX Station LS is well suited for multi-engine floors. Using Fiery Command WorkStation, operators can monitor and manage multiple connected Fiery servers from a single client, and calibrate any connected server with an ES-3000 (not included with the NX Station) stored on the built-in tray.
Who it's made for
High-volume shops or operators who need maximum ergonomic comfort, a larger display, and a fully self-contained workstation setup.
Six-inch, adjustable-height table that accommodates 95% of the population
Schematic views

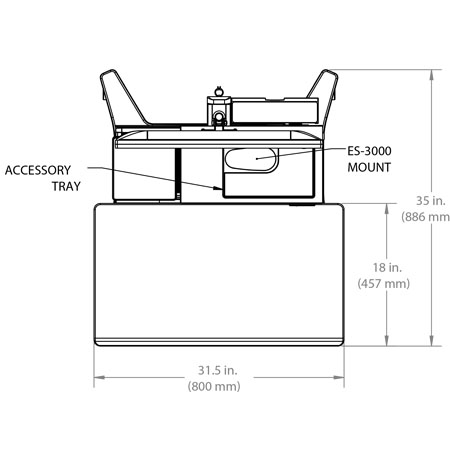

Top view

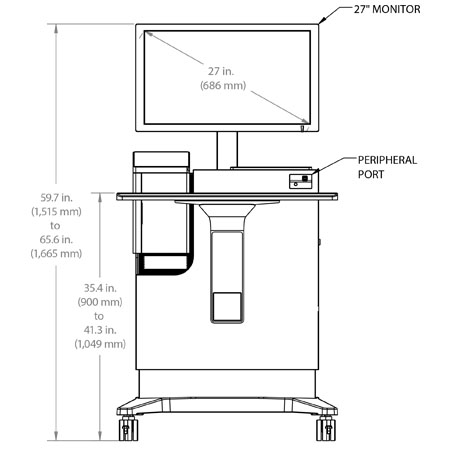

Front view

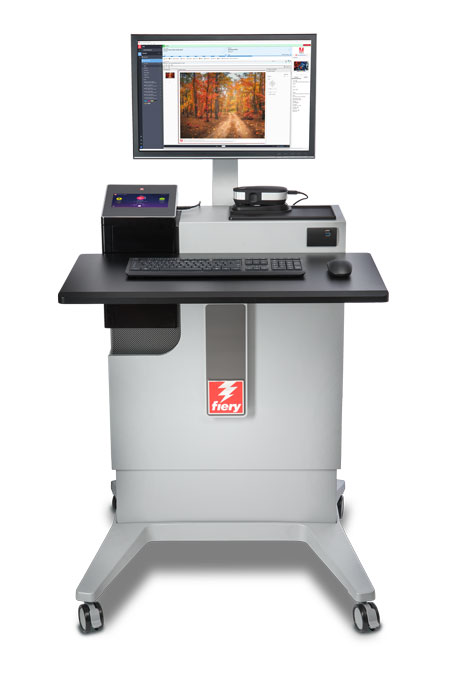

NX Station GL
Compact footprint, full work area
The NX Station GL reduces your floor footprint by over 20% compared to a standard setup without sacrificing work area. A large work surface gives operators plenty of room for tasks like calibration and profiling, while the wireless keyboard and mouse keep things uncluttered and flexible.
Smart storage within reach
A built-in top tray keeps frequently used items like your ES-3000 spectrophotometer (not included with the NX Station) close at hand. A rear compartment stores the ES-3000 measurement ruler, backing board, or other key documents so they're always nearby when you need them.
Quick and easy to install and maintain
The NX server slides out on a built-in shelf, making installation and service access fast and easy.
Central hub for multi-engine environments
The NX Station GL can serve as a central operator hub in multi-engine environments, with Command WorkStation allowing operators to manage multiple connected Fiery servers from a single client and the built-in ES-3000 tray keeping your spectrophotometer within reach for quick calibration.
Who it's made for
Production environments that want a capable, organized workspace with the flexibility to manage multiple print engines from one central location.
Schematic views

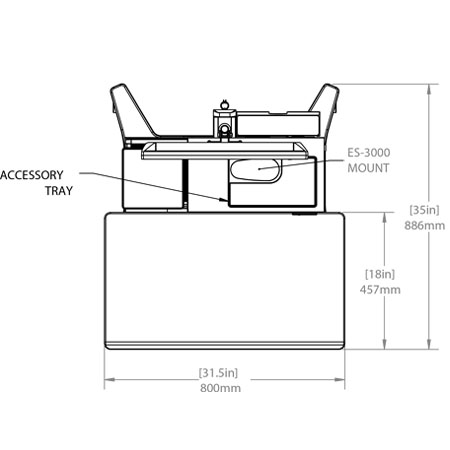

Top view

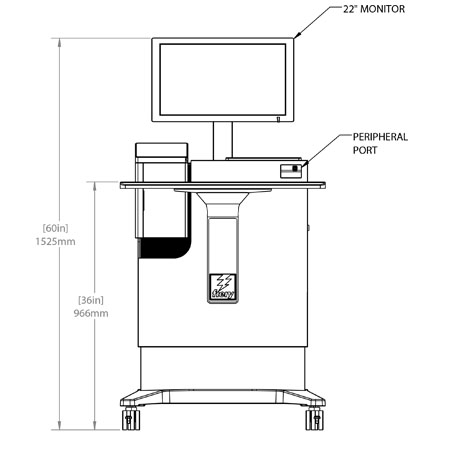

Front view

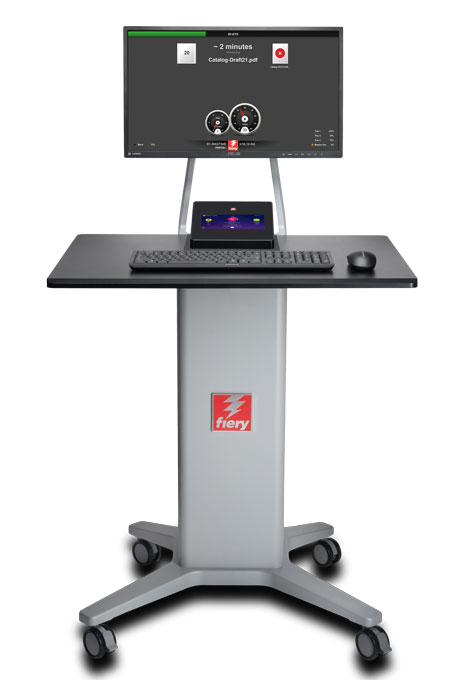

NX One Station
Space-saving design
The NX One Station is a lean, space-efficient workstation designed for environments where floor space matters. The clean layout keeps everything you need for daily production within easy reach, from calibration tools to job media. A large work surface gives you plenty of room for tasks like calibration and profiling, while the wireless keyboard and mouse keep the area uncluttered and flexible.
Easy connectivity
Three USB 3.0 ports are conveniently located on the side of the QuickTouch display, with four additional USB 2.0 ports at the back of the server, so connecting peripherals is never a hassle.
Who it's made for
Print environments running the Fiery NX One server that need a tidy, organized central operator station without a large footprint.
Schematic views

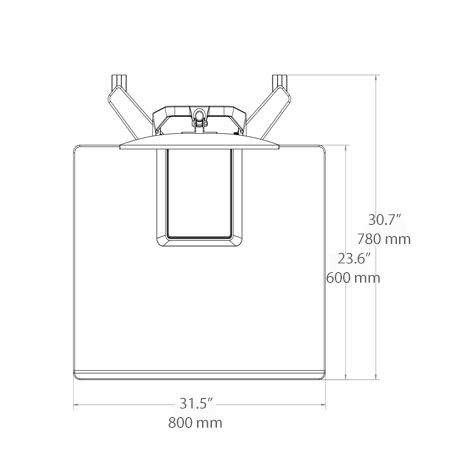

Top view
Front view
Comparison at a glance
| Specifications | NX Station LS | NX Station GL | NX One Station |
|---|---|---|---|
| Compatible server(s) | NX Premium, NX Pro | NX Premium, NX Pro | NX One |
| Display size | 27" / 68.8 cm (1920 x 1080) | 22" / 55.9 cm (1920 x 1080) | 22" / 55.9 cm (1920 x 1080) |
| Display power consumption | 100–240 V, 50/60 Hz, 1.5 A | 100–240 V, 50/60 Hz, 1.2 A | 100–240 V, 50/60 Hz, 1.2 A |
| Adjustable height | Yes, 6" range | No | No |
| Proximity sensor | Yes | No | No |
| USB ports (on station) | 2 USB 3.0 ports Additional ports available on the server | 2 USB 3.0 ports Additional ports available on the server | Ports only available on the server |
| Top storage stray | Yes, designed for Fiery ES-3000 spectrophotometer | Yes, designed for Fiery ES-3000 spectrophotometer | No |
| Sliding server shelf | Yes | Yes | No |
| Internal power strip for cable management | Yes | No | No |
| Wireless keyboard | Yes Requires one AAA battery (included) | Yes Requires one AAA battery (included) | Yes Requires one AAA battery (included) |
| Wireless mouse | Yes Requires one AA battery (included) | Yes Requires one AA battery (included) | Yes Requires one AA battery (included) |
| Shipping weight (without server) | 150.6 lbs / 68.3 kg | 92.5 lbs / 41.9 kg | 51.6 lbs / 23.4 kg |
| Standalone weight (without server) | 157.5 lbs / 71.4 kg approx. | 115.6 lbs / 52.4 kg approx. | 73.4 lbs / 33.25 kg approx. |
| Safety certifications | Tested in conjunction with Fiery server for mechanical stability CE safety mark as described in CB scheme report | Tested in conjunction with Fiery server for mechanical stability CE safety mark as described in CB scheme report | Tested in conjunction with Fiery server for mechanical stability CE safety mark as described in CB scheme report |
| Country certifications | cTUVus (Canada and US) CCC (China) PSE (Japan) KC (Korea) BSMI (Taiwan) CE Mark (Europe) | N/A | N/A |
